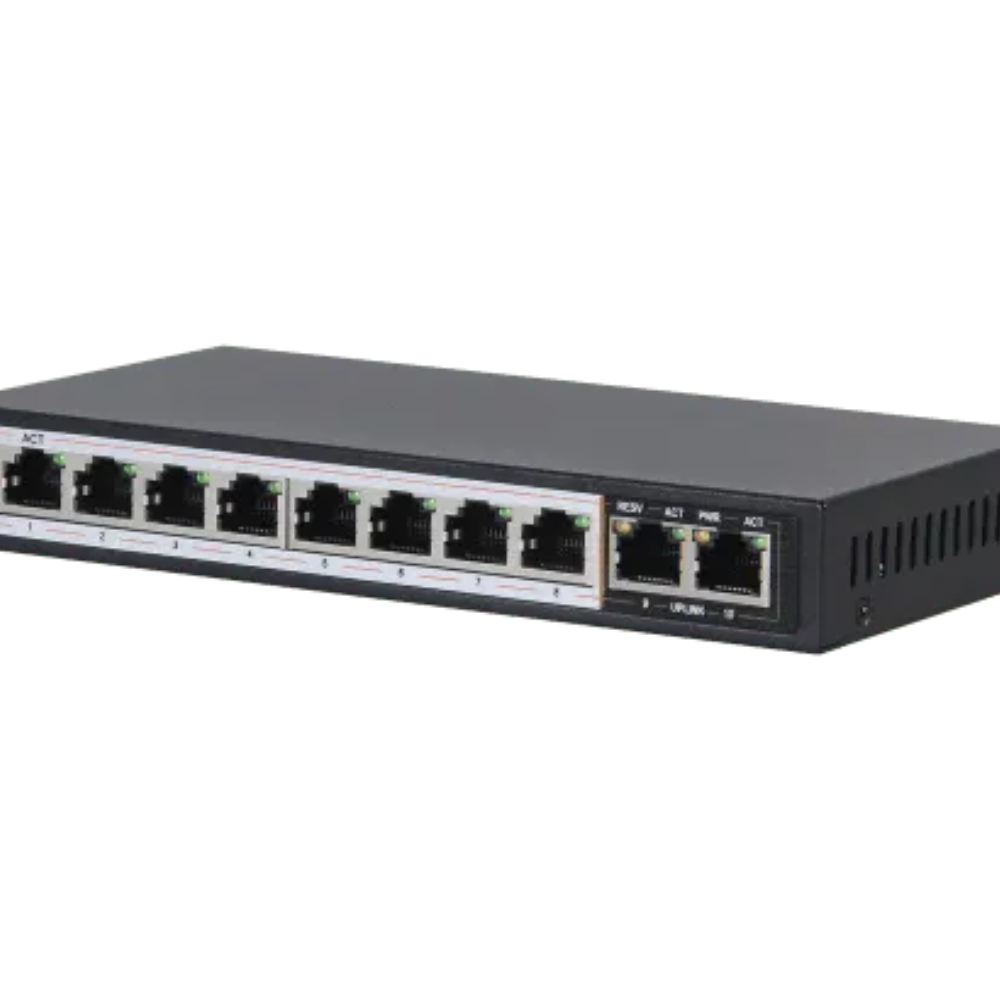

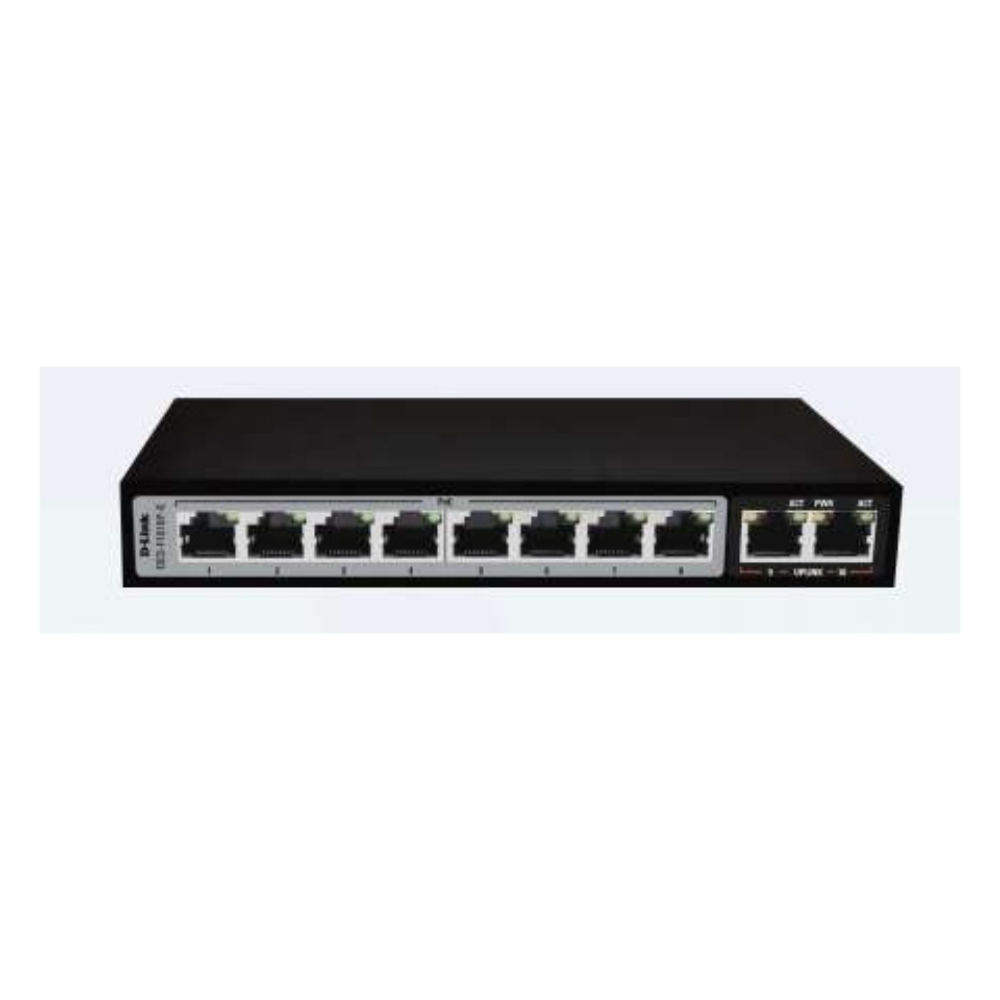

D-Link DES-F1010P-E/B Long Range PoE Switch

D-Link DES-F1010P-E/B Long Range PoE Switch offers unmanaged PoE connectivity for surveillance and wireless setups. This D-Link device includes 8 PoE ports. It adds 2 uplink ports for network extension. The switch supports 10/100 Mbps speeds. Long-range transmission reaches up to 250 meters. Total PoE budget provides 96 watts. Plug-and-play installation requires no setup. Users in Kenya benefit from reliable powering of IP cameras and access points over extended distances.

Product Details

D-Link DES-F1010P-E/B Long Range PoE Switch features 8 10/100 Mbps PoE ports. It includes 2 10/100 Mbps uplink ports. IEEE 802.3af/at PoE protocol powers devices. Each PoE port supplies up to 30W. Extend mode enables 250 m reach on ports 1-8. Auto MDI/MDIX adjusts connections automatically. Flow control prevents data loss. Surge protection guards against 6kV spikes. Fanless metal housing runs quietly. Compact design suits desktop or wall mounting. The switch targets surveillance projects effectively.

Technical Specifications

• Total ports: 10 × 10/100 Mbps RJ45
• PoE ports: 8 × 10/100 Mbps PoE (IEEE 802.3af/at)
• Uplink ports: 2 × 10/100 Mbps non-PoE
• PoE power per port: Up to 30 W
• Total PoE budget: 96 W
• Switching capacity: 2 Gbps
• Forwarding rate: 1.488 Mpps (100 Mbps)
• MAC address table: 2K entries
• Packet buffer: Standard for model
• Transmission distance: Up to 250 m (Extend mode on PoE ports)
• Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3af/at
• Flow control: IEEE 802.3x
• Surge protection: 6 kV lightning protection
• Power supply: External adapter 100-240 V AC, 52 V DC output
• Power consumption: Max based on PoE load
• Housing: Fanless metal case
• Mounting: Desktop or wall-mount
• Dimensions approximate: 184 mm x 94 mm x 27 mm
• Weight approximate: 0.95 kg
• Operating temperature: 0 – 40 °C
• Humidity: 10 – 90 % non-condensing
• Certifications: CE, FCC, RoHS
• Additional: Auto-negotiation, Auto MDI/MDIX on all ports

Why D-Link DES-F1010P-E/B Long Range PoE Switch Stands Out

D-Link DES-F1010P-E/B Long Range PoE Switch extends PoE reach to 250 meters. This eliminates extra power sources for distant devices. 96 W budget powers multiple PoE cameras or APs. Auto features ensure easy deployment. 6 kV surge protection safeguards equipment. Fanless design operates silently. Metal housing adds durability. It supports reliable surveillance over long cables. The switch offers cost-effective solutions. D-Link quality maintains stable performance.

Installers prefer its extended range. Explore Power over Ethernet extensions for distances beyond standard limits.

Visit our D-Link PoE switches for similar models.

Use Cases and Regular Users

Security professionals use D-Link DES-F1010P-E/B Long Range PoE Switch for IP camera installations. It powers and connects cameras up to 250 meters away. Small offices deploy it for Wi-Fi access points. VoIP phones receive power and data through single cables. Retail environments wire surveillance and POS systems. Educational facilities extend networks to remote classrooms. Hospitality venues connect guest-area devices. Rural monitoring setups power sensors over distance.

The switch transmits video feeds reliably. Uplink ports link to NVRs or routers. No configuration speeds installations. It pairs with Cat5e or Cat6 cables. Professionals achieve tidy, efficient setups. Extend mode optimizes long-distance applications.

Check our surveillance networking accessories for compatible cameras.

Review this long-range PoE guide for installation tips.

Technicians in Nairobi apply it in CCTV and wireless projects. It ensures dependable power and connectivity locally.

Why Choose Tech Depot for Your Purchase

Tech Depot supplies genuine D-Link switches with steady stock in Kenya. Expert staff guide PoE and long-range setups. Fast delivery supports immediate projects. Dedicated support resolves technical questions. Order D-Link DES-F1010P-E/B Long Range PoE Switch at Tech Depot today for extended surveillance solutions.

D-Link DES-F1010P-E/B Long Range PoE Switch simplifies remote powering. It combines reach, PoE efficiency, and easy use.
